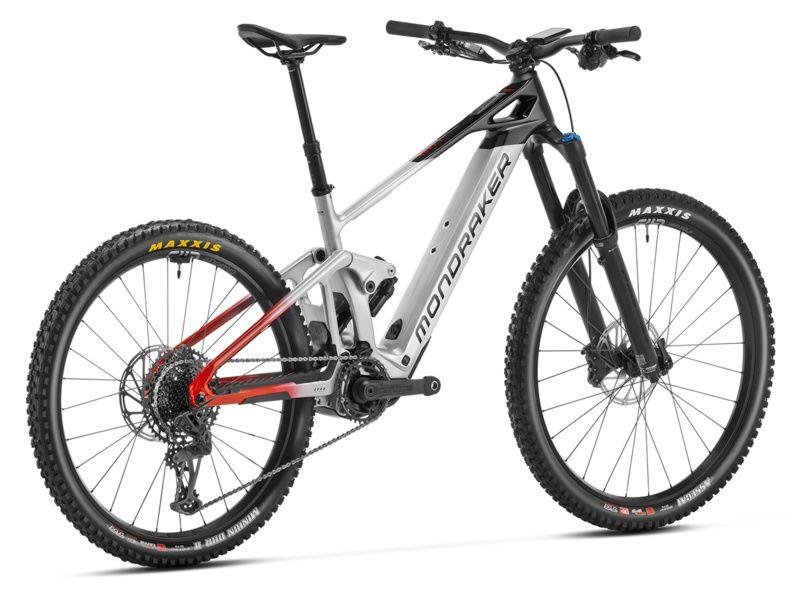

Mondraker Dune R Carbon 2024

Mondraker Dune R is the firts long travel e-bike light (sub 20kg) of the brand. It comes with 170/165 mm of travel, Mullet configuration and Bosch Performance Line SX motor with 400 wh internal battery that provide a 1500 m elevation gain.

This new, punchy lightweight Bosch Performance SX motor offer 55Nm of torque, 600W of peak power and 400Wh battery,  and it's 250Wh Powermore range extender compatible, so this bike offers a second to none riding experience… so much that you have never ridden something as fun and engaging ever before.

The Dune range shares the same carbon fibre frame but with three different builds to choose from: DUNE R, DUNE RR and DUNE XR. The first model in the line-up is the DUNE R, with a Fox 38 29 Float GRIP EVOL Performance fork, SRAM GX Eagle transmission, SRAM DB8 200 mm brakes, ONOFF Pija seatpost of up to 200mm travel (depending on size) and E*Thirteen wheels

So if you are a big fan of long travel bikes and do not want to ride a 25 kg bike, the new Mondraker Dune is made for you !

Features

Frame

• Material : Stealth Carbon Air
• Forward Geometry
• E-Bike optimized Zero Suspension System
• Monobloc upper link
• HHG Internal Cable Routing
• MAX Capacity sealed bearings
• Oversized 15 mm axle
• Exclusive plastic motor covers
• 400 wh internal battery
• Travel : 165 mm
• Headset : Tapered
• Wheels : 27.5" (Mullet)
• Rear axle : 12x148 mm
• Colour : Black/Grey/Red

• Sizes :  S - M - L et XL
• Lifetime warranty (registration in Mondraker website)

Specifications

• Motor : Bosch Performance Line SX (25Km/h) GEN4 SMART SYSTEM Diagonal, Wide
• Battery : Bosch Compact Powertube 400Wh
• 250 Wh powerMore Battery extender availble as option
• Display : Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller

• Fork : FOX 38 Float 3P Performance Grip, 170mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
• Rear Shock : Fox Float X Performance EVOL, 205x65mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
• Shock Settings : Medium compression, medium rebound, air volume spacer 0.4
• Headset : Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
• Stem : Onoff Krypton FG 30mm, CNC, 31.8mm barbore
• Handlebar : Onoff Krypton 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
• Grips : Onoff Desert, Lockon, 135 mm
• Seatpost : Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing
    - Size S : 405 x 95-125 mm
    - Size M : 458 x 120-150 mm
    - Size L : 498 x 140-170 mm
    - Size XL : 498 x 140-170 mm
• Saddle : Fizik Terra Aidon Slim X5
• Front brake : Sram DB8, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steelbacked metal sintered pads
• Rear brake : Sram DB8, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steelbacked metal sintered pads
• Rims : e*thirteen Grappler Core, Hookless 6069 Welded Aluminum 30mm internal width, tubeless ready, 28F / 28R spokes 29 front, 27’5 rear
• Front Hub : e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
• Rear Hub : e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts
• Tire front : Maxxis Assegai 29x2.5WT, tubeless ready, 3C MaxxGrip compound, EXO+ casing, 60TPI, folding bead
• TIre rear : Maxxis Minion DHR II 27’5x2.4 WT, tubeless ready, 3C MaxxTerra compound, DD casing, 2x120TPI, folding bead
• Crank arms : E.13 E*Spec Plus, S size: 165mm M size: 165mm L size: 170mm XL size: 170mm
• Chainring : Sram Eagle 34 T
• Chain : Sram NX Eagle 12v
• Cassette : Sram PG-1230 Eagle 12v 11-50 T
• Rear derailleur : Sram GX Eagle 12v
• Shifter : Sram NX 12v Simple Clic
• Pedals : Not included
• Derailleur hanger : UDH

Mondraker weight : 20.2 kg

Size help

• S : 1.58 to 1.70 m
• M : 1.68 to 1.80 m
• L : 1.75 to 1.86 m
• XL :  1.85 to 1.95 m
