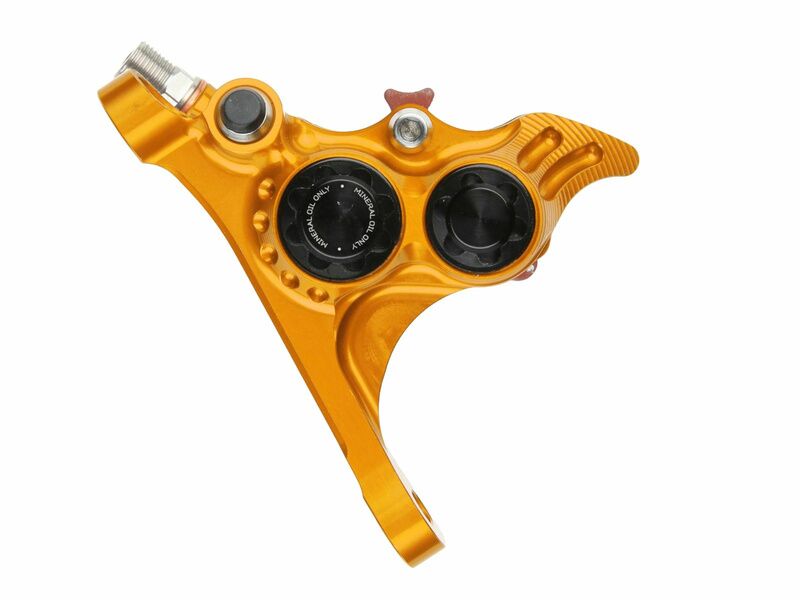

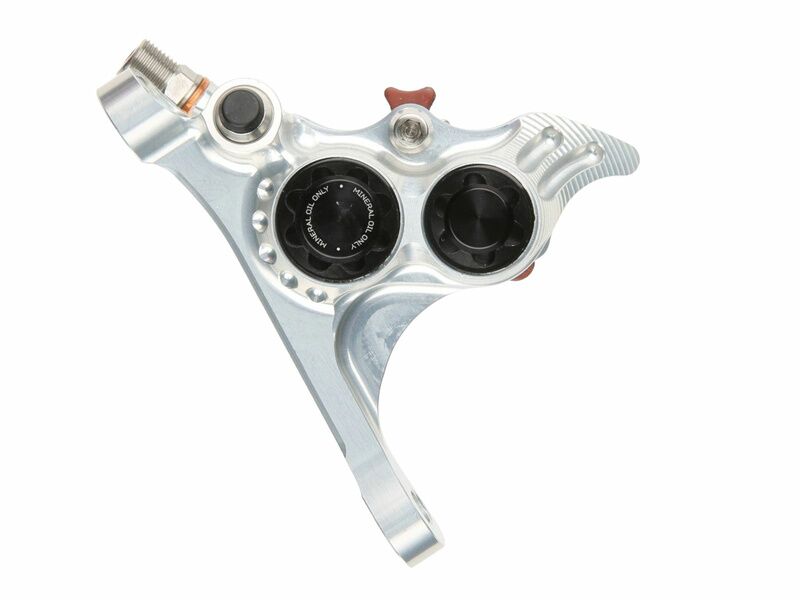

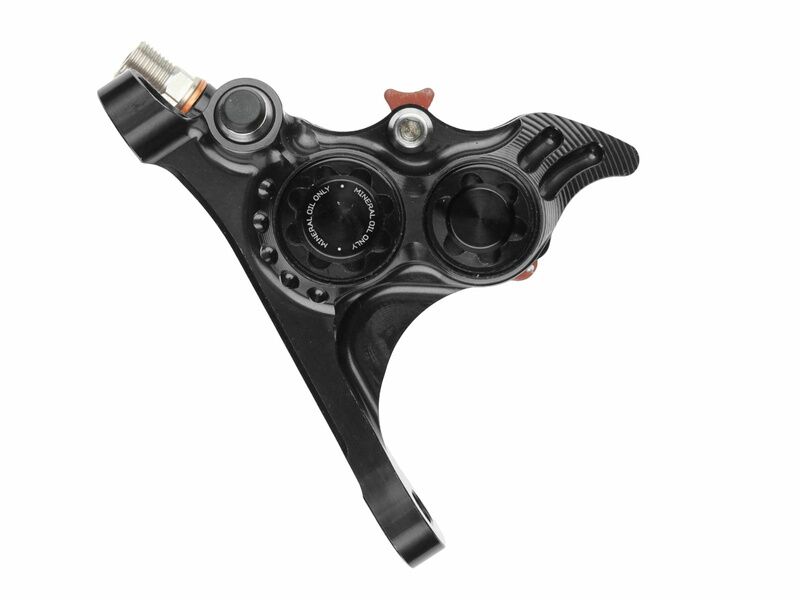

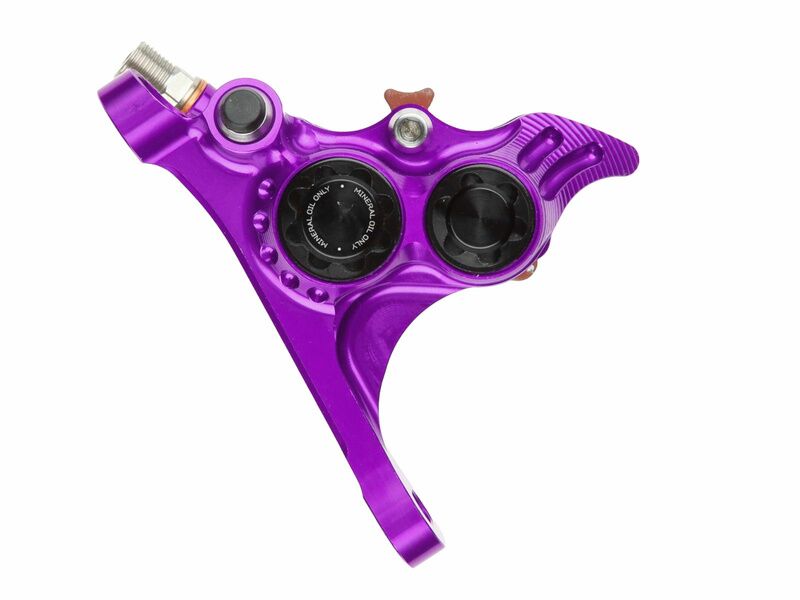

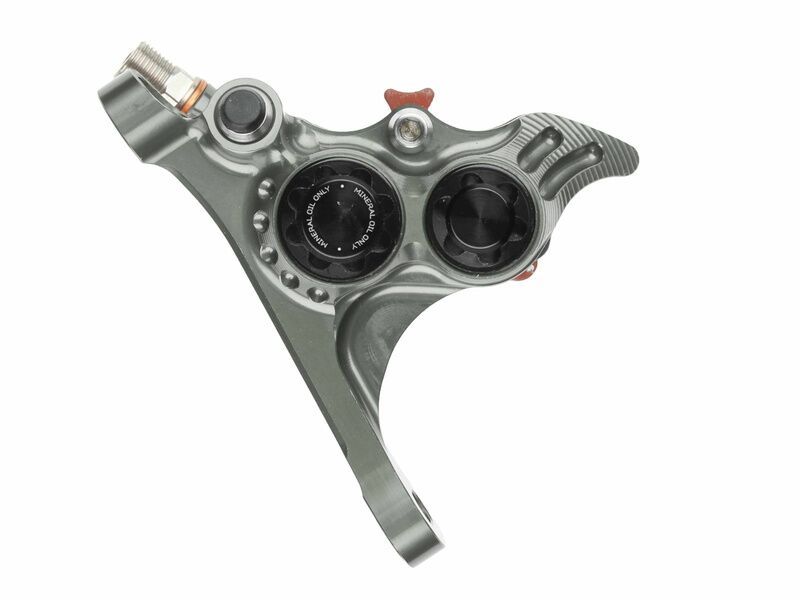

Hope RX4+ SL Front Flat Mount +20 Complete Caliper - Mineral Version 2026

HOPE RX4+ SL Front Flat Mount +20 - 4-piston power for road and gravel
Hope's benchmark caliper evolves to become the RX4+ SL Front +20. Entirely CNC-machined from a 2014 T6 aluminium block, this caliper combines exceptional lightness with increased structural rigidity. Its monobloc design eliminates "lever fade" to offer surgical braking precision, even on the longest descents.

Why upgrade to the RX4+ SL Front Flat Mount +20 (Mineral Version)?

The RX4+ SL Front +20 caliper uses 4 phenolic resin pistons of different diameters (2x14mm and 2x16mm) to guarantee perfect modulation and consistent braking power. This version is specifically designed to work with mineral oil brake fluid, making it perfectly compatible with SRAM Road/Gravel groupsets.

What's new in the SL version:

• Slimline Design: New bore caps reduce the overall width of the caliper, offering better compatibility with the most compact modern forks.
• Simplified Maintenance: New bleed screw compatible with SRAM fittings or Hope bleed tools (HTTBLRXMIN syringe - specific - available separately).
• Mounting Versatility: This Front Flat Mount +20 standard is designed for 70mm bolt spacing. It allows for 160mm or 180mm rotors depending on the adapter used.

Key features:

• Monobloc CNC machining: 2014 T6 Aluminium for optimal thermal dissipation.
• Pads included: Delivered with two types of pads (Blue for road use, Red for CX/Gravel).

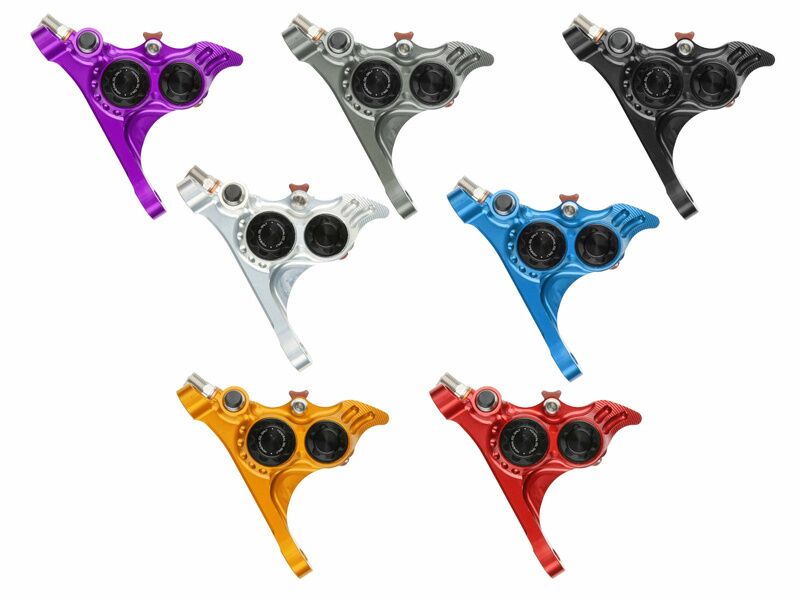

• Customisation: Available in 7 Hope anodised colours (Black, Silver, Red, Blue, Purple, Orange, Smoke).

Specifications

• CNC-machined 2014 T6 aluminium monobloc caliper
• 4-piston caliper (two 14mm and two 16mm pistons)
• Front Flat Mount (70mm bolt spacing)
• Compatible rotor diameters: 160mm or 180mm
• Compatible braking system: Mineral oil only
• Colour: Black, Blue, Red, Orange, Silver, Smoke, or Purple
• Reference: HBSPC106

Lever compatibility :

• SHIMANO
    - Dura Ace Di2 R9270 / R9170 / R9120 / R9200
    - Ultégra Di2 R8170 / R8100 / R8070 / R8170 / R8020
    - 10S Di2 R7170 / R7020 / Di2 R785 / RS685
    - GRX RX820 / RX810 / RX600 / RX400 / RX815 Di2 / RX817 Di2
• CAMPAGNOLO
    - Ekar
    - Record
    - Super Record
    - Campagnolo H11

In the box

• RX4+ SL Front +20 brake caliper
• Blue pads for Road use
• Red pads for Cyclo Cross/Gravel use
• Hydraulic fittings: copper washer, brass insert and olive, shroud nut
• Bleed pad spacer

Documentation:

Guide to determining which RX4+ caliper you need
Guide to determining which adapter you need
RX4+ SL Front +20 caliper exploded view

Practical advice: Ensure you use exclusively mineral oil fluid. The use of DOT 4.0 or 5.1 fluid would irreversibly damage the seals of this version.
