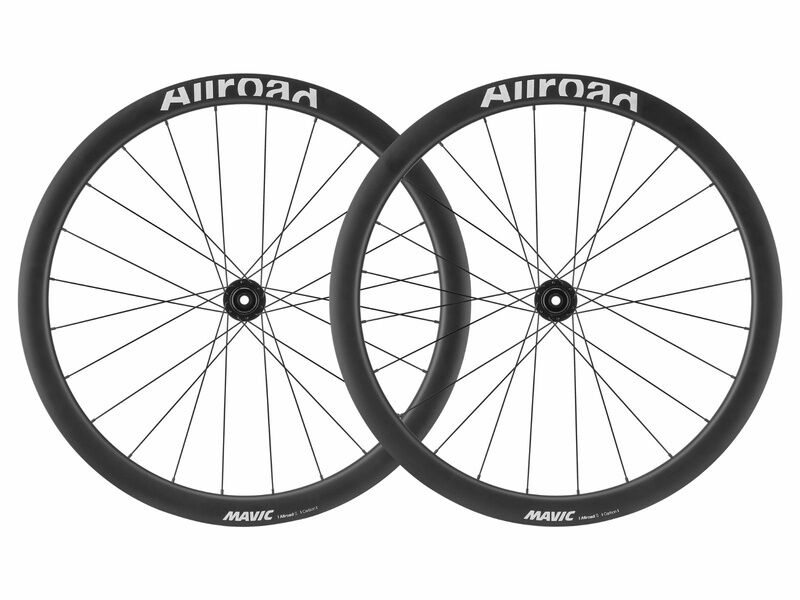

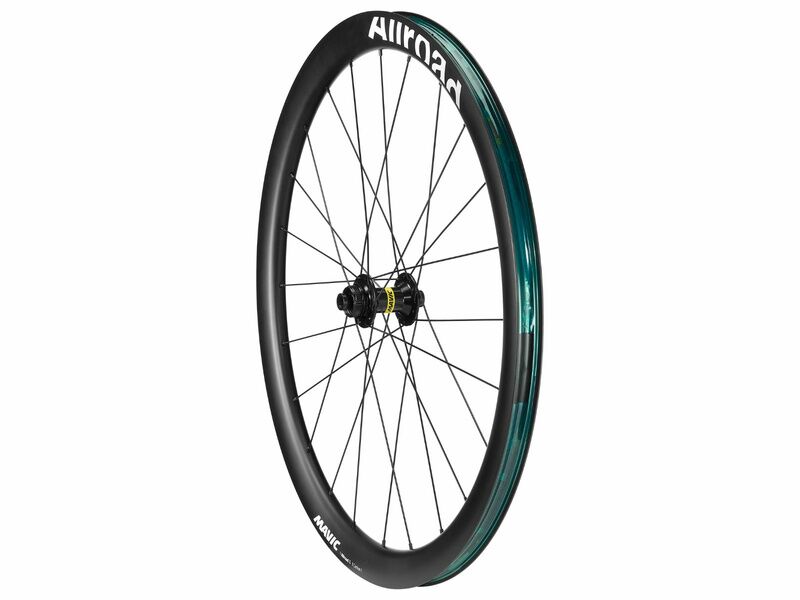

Mavic Allroad S Carbon 700 Wheelset 2026

Mavic Allroad S Carbon wheelset: With an optimised aero profile and a 25 mm wide carbon rim, Mavic performance becomes more accessible, allowing you to ride faster on all your gravel outings

The lightweight carbon rims feature adaptive layup technology, optimising strength in certain areas and lightness elsewhere. By using the right amount of fibres in the less stressed areas of the rim to reduce weight without compromising reliability, the result is livelier wheels that are more enjoyable on accelerations and climbs.

The Mavic UST system (Universal Standard for Tubeless) improves traction, control, and comfort while reducing inertia and the risk of punctures.

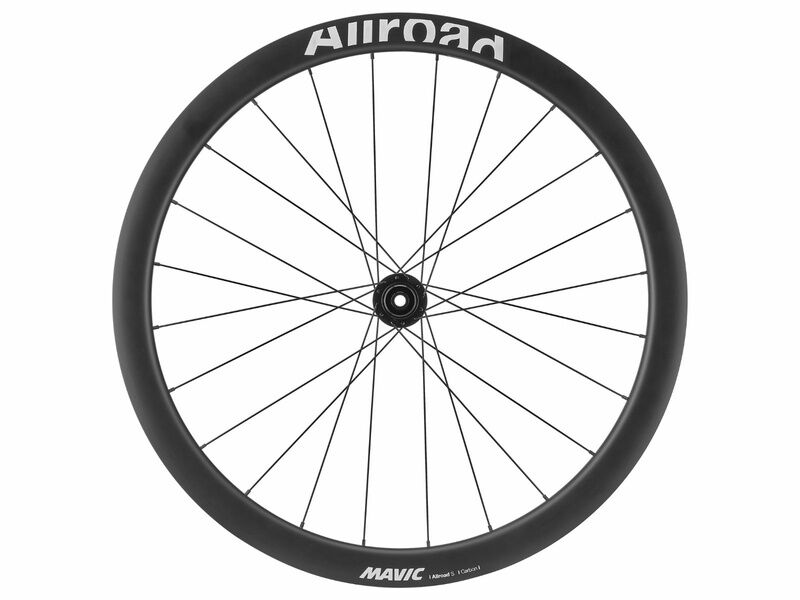

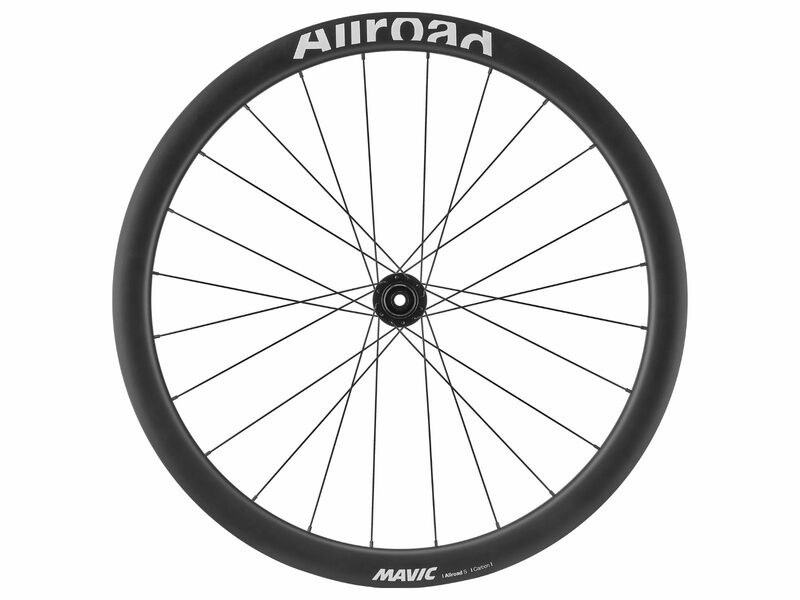

On the front hub side, the Allroad S Carbon integrates a QRM Auto hub with automatic bearing adjustment in 12 x 100, convertible to quick release via adapters (sold separately).

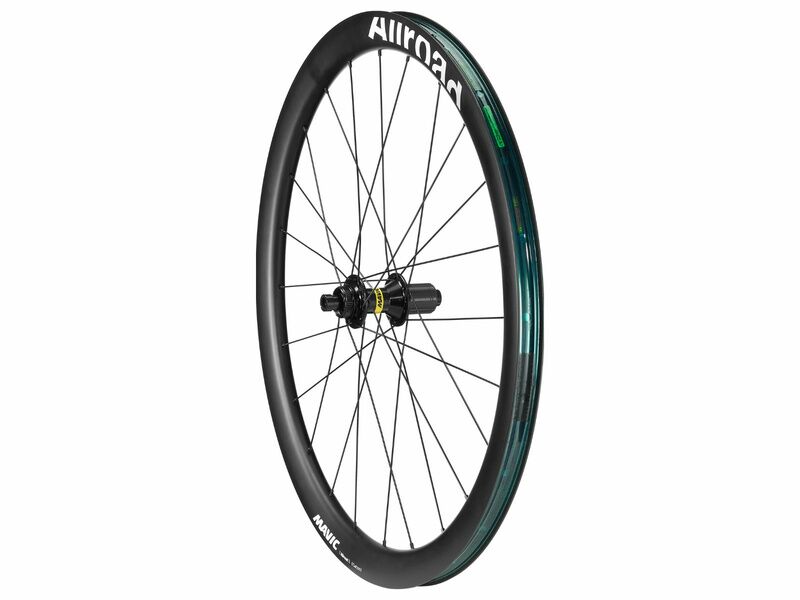

At the rear, the 12 x 142 QRM Auto hub features automatic bearing adjustment and the Instant Drive 360 freehub system for rapid engagement, stiffness, and increased durability. The wheels have Center Lock disc mounts and can accept Shimano or SRAM XD-Road freehubs, convertible to Campagnolo via an optional body. The rear hub can also be converted to quick release with separately sold adapters.

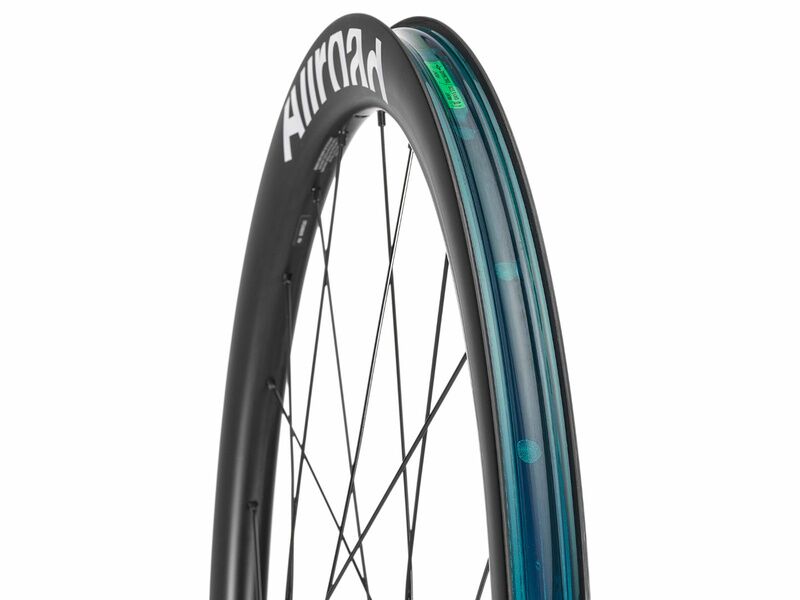

Rims

• Material: Unidirectional carbon fibre
• Hookless rim profile
• Tyre: UST Tubeless and inner tube
• Height: 42 mm
• Internal width: 25 mm
• ETRTO: 622x25TSS
• Adaptive Layup Technology
• UST Tubeless Technology
• Aero Wide Rim Technology

Spokes

• Material: Steel
• Shape: J-bend, round
• Nipples: ABS steel
• 2-cross lacing without contact

Front Hub

• Hub with Center Lock disc mount (R)
• Axle: 12 x 100 mm
    - Quick release compatible with separately sold adapters
• QRM Auto (automatic bearing adjustment)

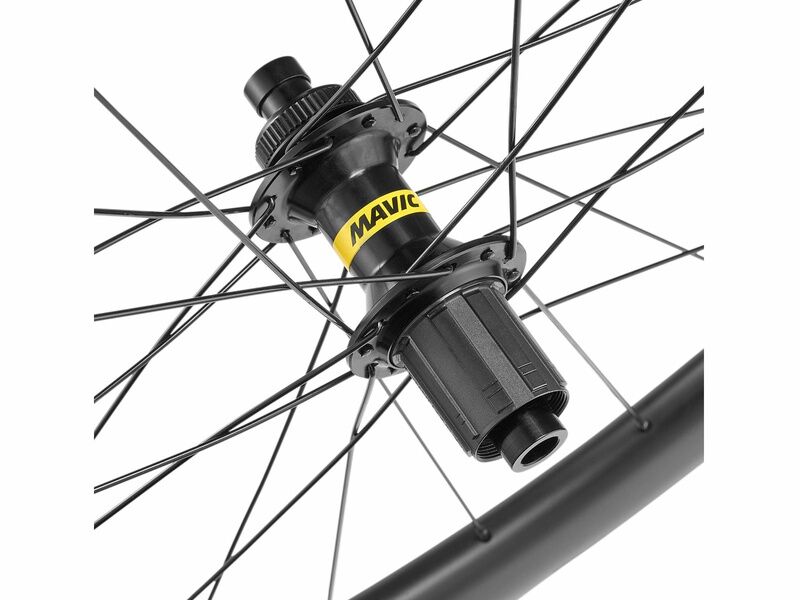

Rear Hub

• Hub with Center Lock disc mount (R)
• Axle: 12 x 142 mm
    - Quick release compatible with separately sold adapters

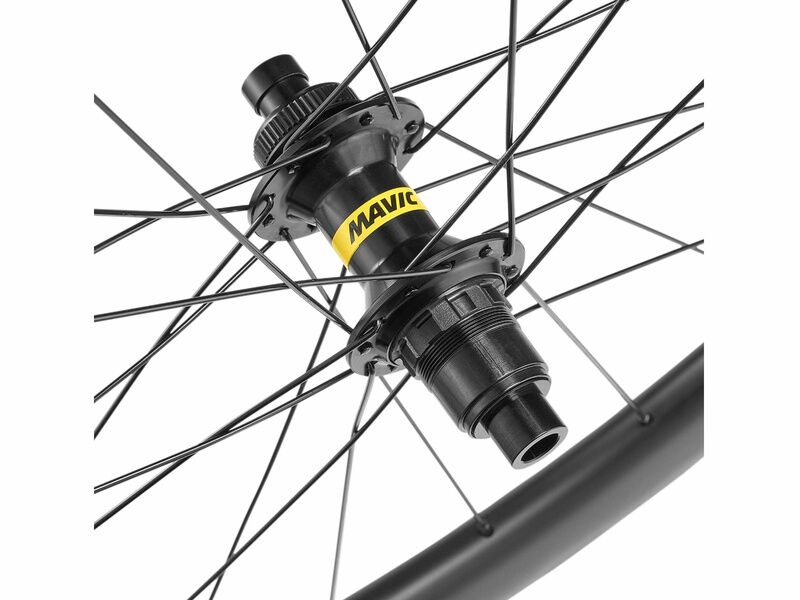

• Instant Drive 360 freehub body
• Available freehub bodies:
    - Standard (Shimano-SRAM, smallest cassette cog ≥ 11 teeth)
    - Standard Light (Shimano-SRAM, smallest cassette cog ≥ 11 teeth)
    - XD-R (SRAM, smallest cassette cog < 11 teeth)
    - Campagnolo ED11
    - Campagnolo N3W

Use:

• ASTM CATEGORY 2: ROAD AND PATHS, JUMPS UNDER 15 CM
• Recommended tyre sizes: 30 to 64 mm
• Max weight: 135 kg (including rider and bike)

Key Technologies

• Adaptive Layup (carbon layup reinforced in some areas and lighter elsewhere)
• QRM Auto (high-quality Mavic C3 double-sealed bearings with automatic adjustment)
• ID360 (faster engagement) for rear wheel only
• Aero Wide Rim (high-speed and control performance)

Warranty

• 2 years
• Extendable to 3 years by registering with the Mavic Care programme within two months of purchase

Delivered with

• Uninstalled UST valve
• UST rim tape pre-installed on the wheel
• User guide

Manufacturer weight for the wheelset: 1,695 g
