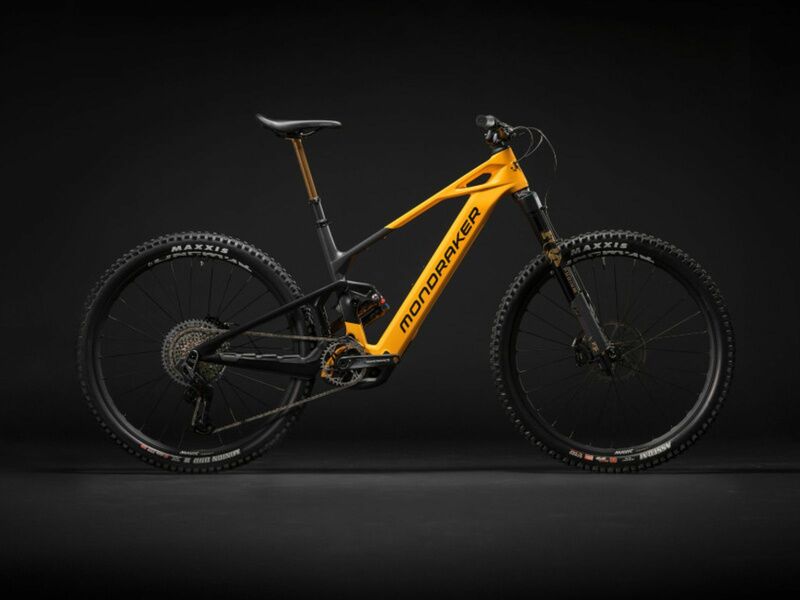

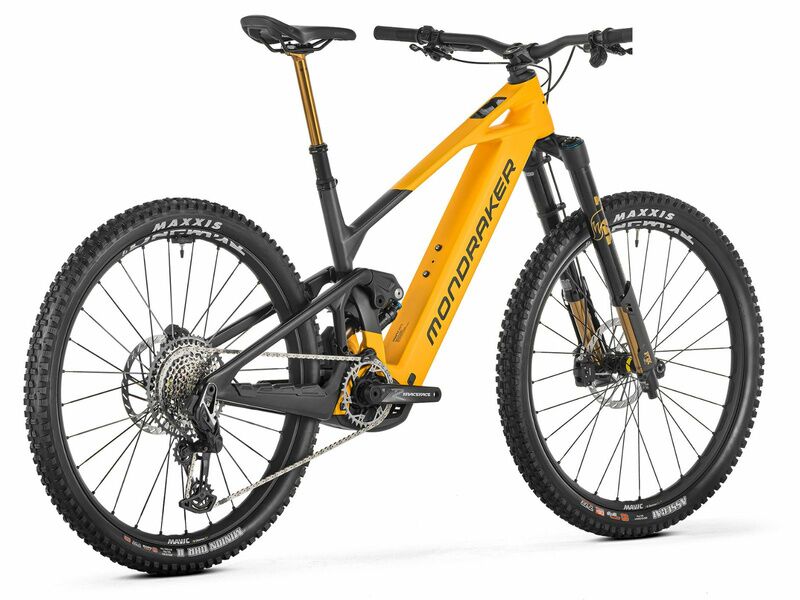

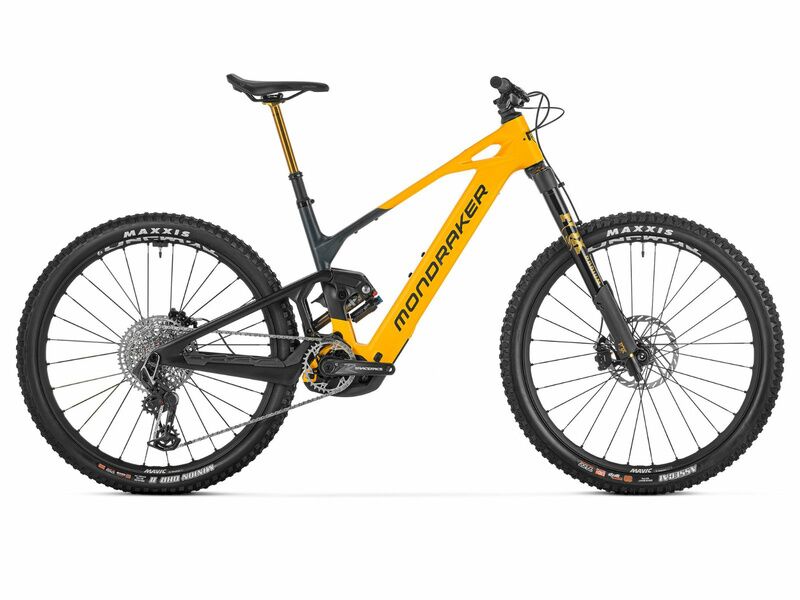

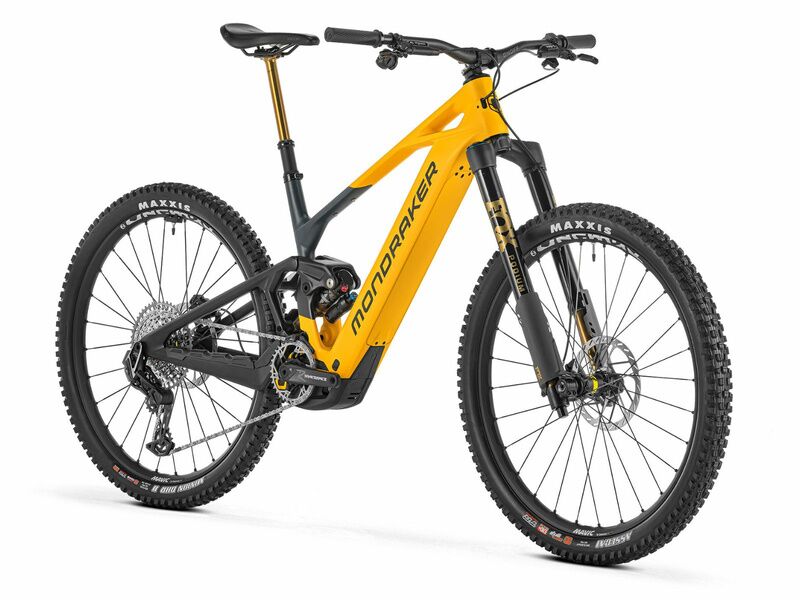

The Mondraker Crafty Carbon RR S is a cutting-edge bike in the Full Power range, benefiting from a Crafty Stealth Air full carbon frame. Designed for the most demanding terrain, it offers a perfect balance between weight, power, and performance.
It is equipped with the Bosch Performance Line CX Smart System engine, capable of reaching an impressive 100 Nm of torque (via update). It features the new integrated 800 Wh Bosch Powertube battery for maximum range, allowing you to push your limits. The ONOFF S9 component range completes the build, including an 800 mm wide carbon fibre handlebar.
On the suspension side, this model features the latest Fox Podium Factory Kashima fork and a Fox Float-X Factory Kashima shock, offering raw absorption and high-precision control. The SRAM X0 AXS Eagle T-Type wireless transmission and powerful SRAM Maven Silver brakes (with 200mm HS2 discs) complete this professional-quality build.
Like the other models in the Crafty range, it benefits from the optimised kinematics of the updated Zero Suspension system and Forward Geometry for an ideal riding position and outstanding pedalling efficiency. The internal cable routing (HHG) ensures a very clean finish.
Highlights

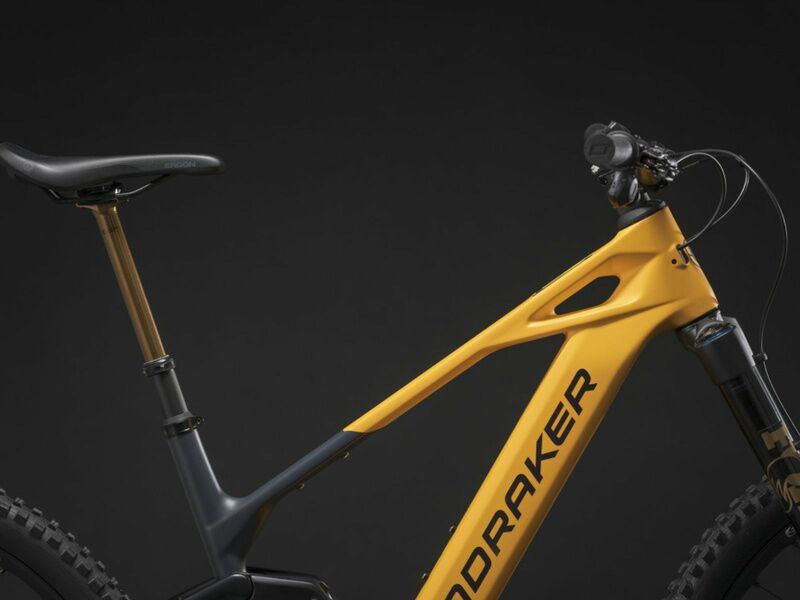

A Stealth Air full carbon frame, including the one-piece monobloc upper link.
The Bosch Performance Line CX Smart System engine, developing up to 100 Nm of torque (via update).
A high-capacity 800 Wh integrated Bosch Powertube battery.
Fox Factory Kashima suspension (160mm Podium fork and Float-X shock).
A precise and reliable SRAM X0 AXS Eagle T-Type wireless transmission.
Powerful SRAM Maven Silver braking with 200 mm HS2 discs.
Fox Transfer Factory Kashima telescopic post.
Specifications
Frame
Material: Crafty Stealth Air full carbon, updated Zero Suspension System, 150 mm travel
Geometry: Forward Geometry
Battery: Internal removable
Rear axle: Boost 12x148 mm, UDH
Head tube: Tapered, HHG internal cable routing
Linkage: One-piece monobloc upper link
Bearings: Sealed max capacity, 15 mm oversized axle
Protections: Exclusive plastic motor protectors
Sizes (geometry): S: 380 mm / M: 410 mm / ML: 435 mm / L: 460 mm / XL: 490 mm
Lifetime warranty (registration on the Mondraker website required)
Components
Motor: Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)
Battery: Bosch Powertube 800Wh

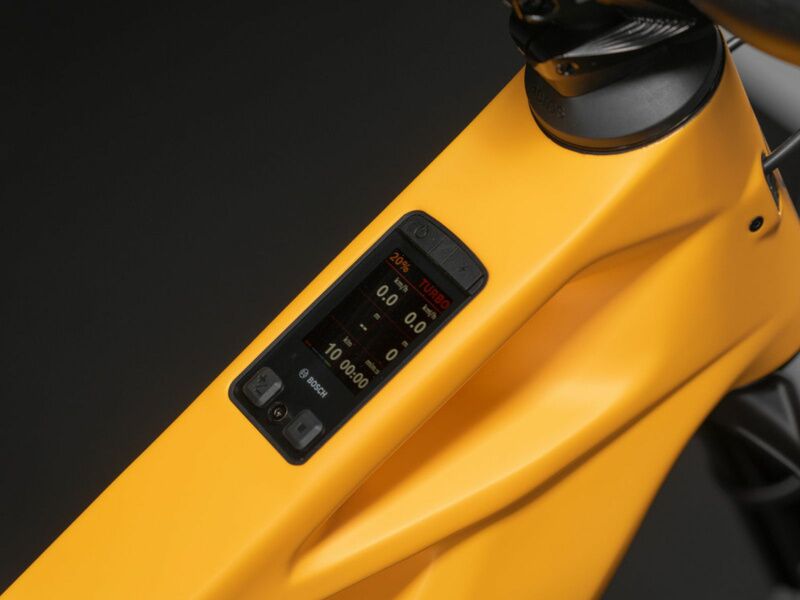

Display: Kiox 400C / Bosch Mini Remote
Fork: Fox Podium 29 Float GRIPX2 Factory Kashima, 160 mm, tapered steerer tube, Boost 20x110 m Kabolt axle, 44 mm offset. Adjustments: high and low-speed compression, high and low-speed rebound, air preload

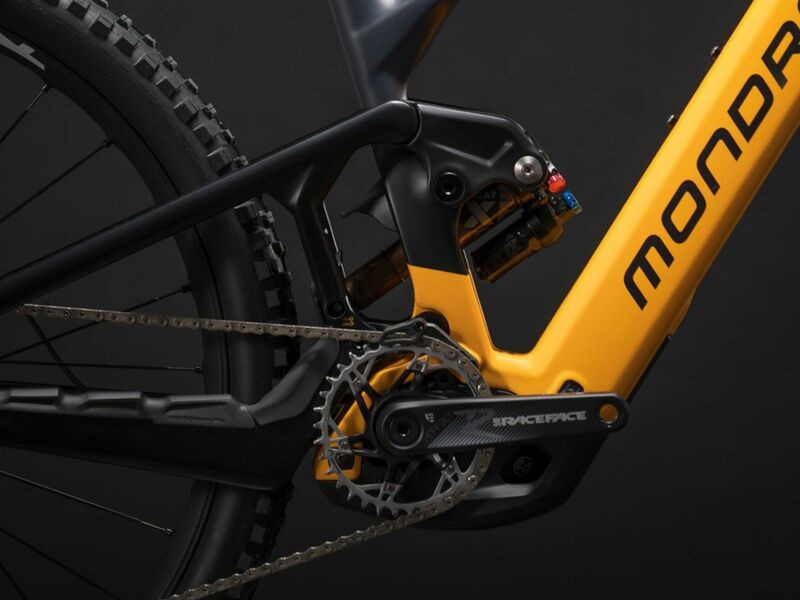

Shock: Fox Float-X Factory Kashima EVOL LV, 185x55 mm. Adjustments: 2-position compression lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8 mm bottom bushings
Headset: Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, internal cable routing, sealed bearings with blocklock
Stem: ONOFF S9 30 mm 0º, Full CNC, 31.8 mm bore
Handlebar: ONOFF S9 1.0 Carbon, rise: 25 mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8 mm bore. Size L and XL: 38 mm rise.
Grips: ONOFF Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
Seatpost: Fox Transfer Factory Kashima internal, adjustable travel, 31.6 mm diameter - size S: 95 mm -120 mm - size M: 125 mm -150 mm - size ML: 155 mm -180 mm - size L: 185 mm -210 mm - size XL: 185 mm - 210 mm
Saddle: Ergon SM-10
Front brake: Sram Maven Silver, 4-piston caliper (18 and 19.5 mm pistons), HS2 200 mm, one-piece IS 6-bolt disc, steel-backed sintered metal pads
Rear brake: Sram Maven Silver, 4-piston caliper (18 and 19.5 mm pistons), HS2 200 mm, one-piece IS 6-bolt disc, steel-backed sintered metal pads
Brake lever: Sram Maven Silver, SwingLink and lever pivot bushings, tool-free reach adjust
Rims: Mavic E-Deemax S 29, 30 mm internal width, Maxtal welded, PFP, tubeless, 28 spokes
